Enclosure and Tank Range



On this page we have listed the standard enclosures and tanks we currently use. You can also download the data sheet for these enclosures and tanks from links on this page and PDF Downloads page.

P RANGE OF ENCLOSURES:- click on text below to download P enclosure data sheet

P Range Enclosures DATA SHEET

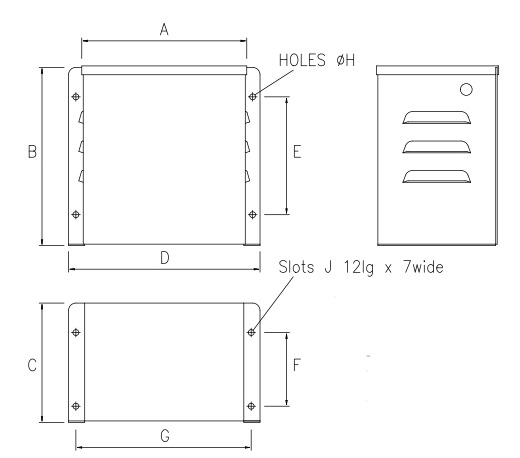

P Enc Sketch

P Style Enclosure

IP22 RATED / SHEET STEEL / WALL OR FLOOR MOUNTING / COLOUR PEBBLE GREY RAL7032

Enclosure Ref A B C D E F G H
P0 135 132 118 200 74 65 160 7
P1 135 195 118 200 126 65 160 7
P2 160 225 155 220 152 103 185 7
P3 200 245 185 270 152 114 236 7
P4 260 272 215 340 152 114 300 7
P5 290 355 250 350 229 159 318 7
P6 315 455 315 385 254 161 344 7
Enclosure Ref A B C D E F G H








E RANGE OF ENCLOSURES:- click on text below to download P enclosure data sheet

E Range Enclosures DATA SHEET

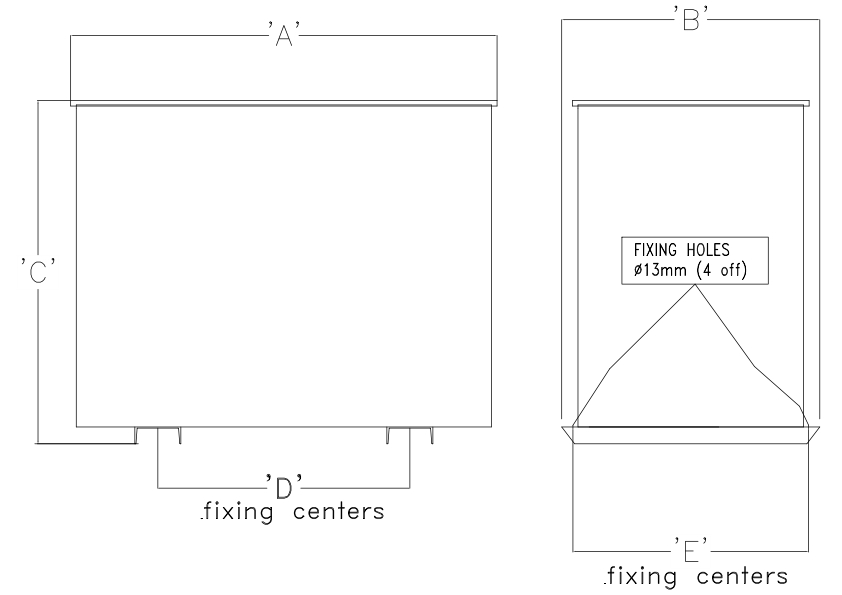

E Enclosures_001

E Style enclosures

IP22 RATED / SHEET STEEL / FLOOR MOUNTING / COLOUR RAVEN BLACK H16 (CROMADEX 248)

Enclosure Ref A B C D E
E150F/3 1220 750 1150 560 700
E200F/3 1250 750 1150 610 700
E250F/3 1275 750 1150 750 750
E300F/3 1450 815 1250 780 765
E400F/3 1450 815 1250 830 765
E500F/3 1450 815 1250 860 765
E600F/3 1550 820 1500 880 780
E750F/3 1550 830 1500 890 780
E1000F/3 1550 830 1500 930 780
Enclosure Ref A B C D E

We can also offer enclosures suitable for IP ratings up to and including IP66.


T RANGE OF ENCLOSURES:- click on text below to download P enclosure data sheet

T Range Enclosures DATA SHEET

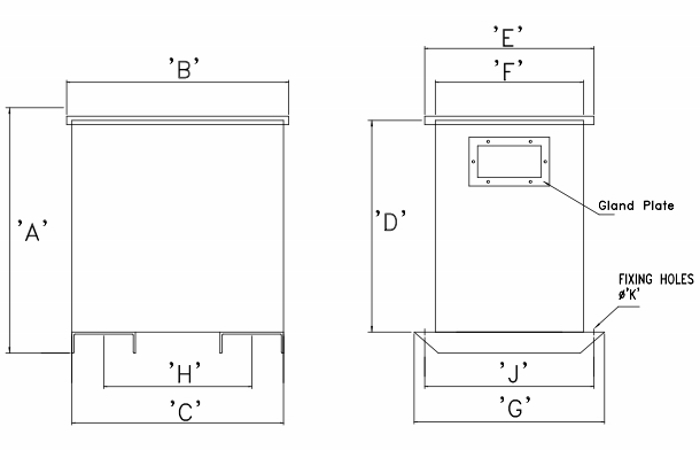

T ENC Sketch 01

T style enclosures

IP22 RATED / SHEET STEEL / FLOOR MOUNTING / PEBBLE GRAY RAL7032

Enclosure Ref A B C D E F G H J K Wgt (kg)
T3 567 525 500 500 400 350 450 350/168 400 13 DIA 20
T4 665 625 600 600 454 400 500 450/188 450 13 DIA 27
T5 825 770 740 760 535 485 600 650/228 550 13 DIA 50
Enclosure Ref A B C D E F G H J K Wgt (kg)

OIL TANK RANGE for oil filled transformers:– click on text below to download P enclosure data sheet.

Oil Tank Range Data Sheet

IP65 RATE / SHEET STEE/ FLOOR MOUNTING/ COLOUR 1436 HPG HAMMER GREY

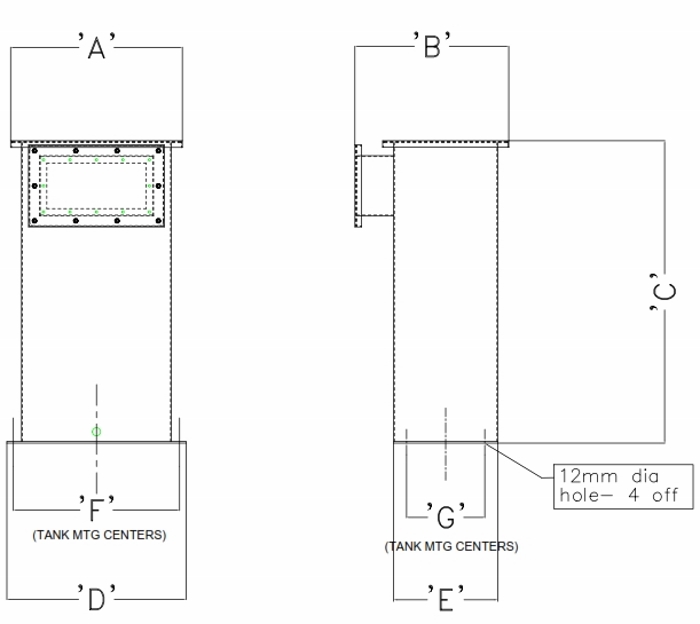

OIL TANK drg_001

Oil Tanks (IP65) cw terminal chamber.

Tank Ref A B C D E F G
1 425 372 690 445 220 405 140
2 465 392 855 485 240 445 165
3 530 480 930 550 320 510 240
4 575 535 1125 590 380 550 305
Tank Ref A B C D E F G

Whilst every attempt is made to ensure that the information displayed is accurate and up to date, all information should be taken as guidance only and confirmed data sought at time of order.
