Three Phase Transformers

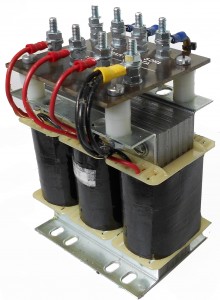

hockway1

Custom made transformers from 50VA up to 1MVA, voltages up to 3.3kV.

Transformers are manufactured to BS171, BSEN 60076 where applicable.

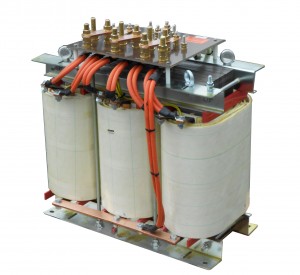

Three Phase transformer



They can be supplied as isolating or auto-wound with voltages to customer’s requirements.

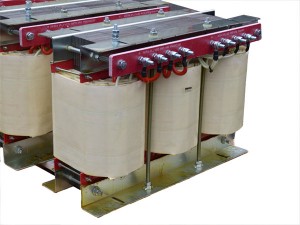

P1020304

Ventilated enclosures can be supplied for the whole range and higher IP rated enclosures can be supplied up to 100kVA

Contact sales@birminghamtransformers.co.uk





VA/kVA Dimensions LxDxHmm Open weight ENCLOSURE REF Enclosed dimensions Enclosed weight
50 118x70x127 4 P3 270X184X244 7.8
200 150x105x175 6 P3 270X184X244 9.8
500 180x140x240 10 P4 340X213X272 14
750 180x150x240 10 P4 340X213X272 14
1 180x160x240 12 P4 340X213X272 16
1.25 180x175x240 14 P4 340X213X272 18
1.5 180x180x240 16 P4 340X213X272 20
2 240x160x280 20 P6 385X315X455 30
3 300x180x330 35 P6 385X315X455 45
4 300x200x330 38 P6 385X315X455 48
5 300x230x330 40 P6 385X315X455 50
6 300x240x330 46 P6 385X315X455 56
8 360x220x400 65 EF6 480 x 400 x 550 80
10 360x240x400 73 EF6 480 x 400 x 550 88
12.5 420x240x500 90 EF6 480 x 400 x 550 105
15 420x260x500 110 EF6 480 x 400 x 550 125
17.5 480x250x550 115 EF7 630x500x650 137.5
20 480x260x550 120 EF7 630x500x650 142.5
