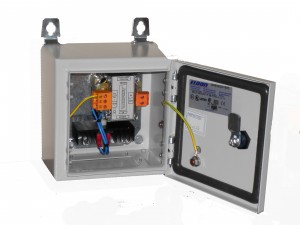

Transformer rectifier / DC
We manufacture both air and oil cooled transformer rectifiers with single or three phase inputs.
Transformers can be supplied to be incorporated in DC power supplies or as a complete unit.
![images[3]](http://www.industrial-transformers.co.uk/wp-content/uploads/2013/03/images3.jpg)
Download PDF
Contact sales@birminghamtransformers.co.uk
|
Ref |
Cont Rating KW |
Crane Rating KW |
Tank Size |
Weight kg |
|
TR1 |
0.5 |
0.7 |
1 |
66 |
|
TR2 |
1.0 |
1.4 |
1 |
70 |
|
TR3 |
1.5 |
2.1 |
1 |
79 |
|
TR4 |
2.0 |
2.8 |
1 |
85 |
|
TR5 |
2.5 |
3.5 |
1 |
88 |
|
TR6 |
3.0 |
4.2 |
1 |
90 |
|
TR7 |
3.5 |
5.0 |
1 |
92 |
|
TR8 |
4.0 |
5.6 |
2 |
100 |
|
TR9 |
4.5 |
6.3 |
2 |
112 |
|
TR10 |
5.0 |
7.1 |
2 |
120 |
|
TR11 |
5.5 |
7.7 |
2 |
135 |
|
TR12 |
6.0 |
8.4 |
2 |
160 |
|
TR13 |
6.5 |
9.1 |
3 |
185 |
|
TR14 |
7.0 |
9.8 |
3 |
200 |
|
TR15 |
7.5 |
10.5 |
3 |
230 |
|
TR16 |
8.0 |
11.2 |
3 |
235 |
|
TR17 |
8.5 |
11.9 |
3 |
240 |
|
TR18 |
9.0 |
12.6 |
3 |
250 |
|
TR19 |
9.5 |
13.3 |
3 |
255 |
|
TR20 |
10.0 |
14.0 |
3 |
265 |
|
TR21 |
12.5 |
17.5 |
3 |
310 |
|
TR22 |
15.0 |
21.2 |
4 |
325 |
|
TR23 |
17.5 |
24.75 |
4 |
345 |
|
TR24 |
20.0 |
28.0 |
4 |
360 |
|
TR25 |
22.5 |
31.8 |
4 |
375 |
|
TR26 |
25.0 |
35.0 |
4 |
390 |
|
TR27 |
27.5 |
38.0 |
4 |
420 |
|
TR28 |
30.0 |
42.0 |
4 |
435 |
|
Ref |
Cont Rating KW |
Crane Rating KW |
Tank Size |
Weight kg |
